HDMI 2.1 eARC Audio Extractor for AMP and eARC Soundbar

20% Off

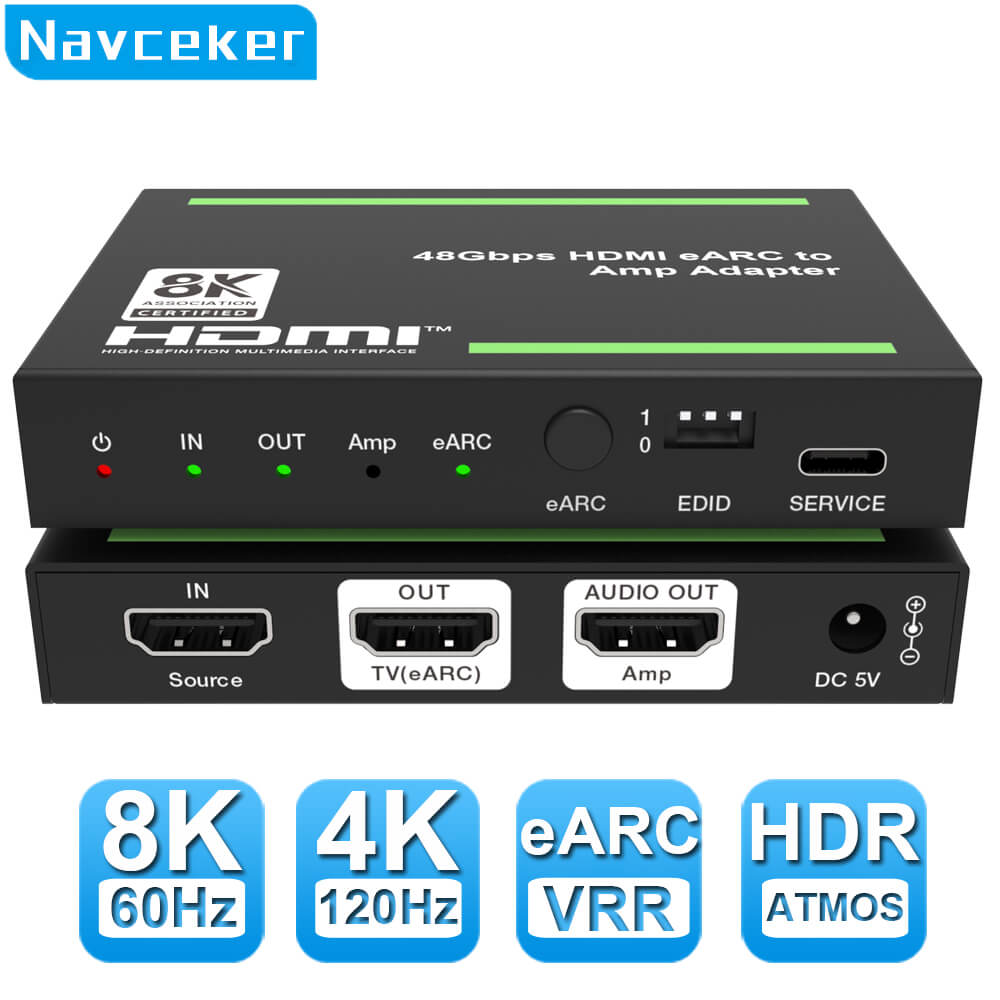

HDMI 2.1 eARC Audio Extractor

Navceker 8K 60Hz HDMI 2.1 eARC Audio Extractor RGB 4:4:4 HDR 10+ HDMI Audio Splitter with HDMI AUDIO OUT for PS5, XBox Series...

Price:
  • $105.88
  • $132.50
Subtotal
Quantity:
Why you love it
  • Visual Enjoyment,8K@60Hz,4K@60/120Hz,2K@144Hz,1080P@240Hz
  • eARC,HDR 10+,VRR, ALLM, QMS, QFT, SBTM,Dolby Vision
  • 48Gbps transmission Speed,CEC Control,Smart EDID Management
  • 7.1CH eARC OUT for HDMI eARC Port of all kinds of eARC soundbar
  • 7.1CH AUDIO OUT for HDMI INPUT of Non-eARC AV receiver or Amplifier
  • 5.1CH Optical Toslink output for Speaker or Amplifier
  • 2.0CH 3.5mm jack L/R output for Spearker or headset
  • Connect Game Console/Host,Input:PS5/4,XBox,Roku, PC,Laptop etc,Output: HDMI TVs, projectors, monitors,AUDIO OUT:Amplifier and AV Receiver.
  • Certified by CE,FCC & ROHS,One Year Free Warranty.
  • Buy with confidence, we have obtained the relevant certification to ensure safety and reliability.

Navceker HDMI 2.1 eARC Extractor is design by High-performance ITE：IT66189,IT318 and IT66368,6-Layer PCB,Aluminum Shell and 24K Gold Plated Corrosion-resistant Connectors to ensure superior signal transfer.
There are 8 kinds of EDID Management with AUDIO OUT/eARC OUT/ Optical Toslink/ 3.5mm L/R to enjoy 7.1CH / 5.1CH / 2.0CH audio as you hope.

High-performance Chipset
ITE：IT66189,IT318 and IT66368 to ensure get stable 8K@60Hz / 4K@60/120Hz image and eARC,No flick,No delay.
6-Layer PCB
Built-in ESD protection
Built-in automatic adjustment system
More Safe and Durable.
HDMI 2.1 and HDCP 2.3
8K@60Hz with YUV 4:2:0,12 Bit
4K@120Hz RGB 4:4:4,8/10/12Bit
Enjoy HDR 10+,eARC,VRR,ALLM,QMS,Dolby Vision,Dolby ATMOS.

Navceker HDMI 2.1 eARC Audio Splitter is Certified by CE,FCC & ROHS,Newest HDCP 2.3 protocol to protect User's privacy and 48 Gbps speed transmission.
Warm Tips:
1.when you use Amplifier or AV receiver,please use HDMI INPUT of Amplifier or AV receiver to connect with AUDIO OUT HDMI Port
2.when you use Sonos eARC / ARC Soundbar or another eARC soundbar,please connect HDMI eARC Port of eARC soundbar with eARC OUT of our audio extractor
Each of device will pass 6 hours rigorous testing before delivery.

Usually we will ship within 1-3 days.
European countries-shipping time is usually 15-20 days.
North American countries-shipping time is usually 7-12 days.
Other countries-shipping time is usually 15-30 days.
Note: Due to remote locations, bad weather, and flight delays, the transportation time may be delayed.

  • $105.88
  • $132.50

Customer Reviews

D. Chandler

Attached PS5, Sonos EARC, and Sony TV to switch. Played High refresh rate game containing Dolby Atmos. The Sonos application confirmed playback of Dolby Atmos. So far, no sound or picture issues.

Nelairi

No degradation in image or audio quality with Sonos Soundbar and QLED TV. I haven't noticed extra latency, but I play rhythm games through it.very good.

Roborob

The 2160P 144fps video output is also as good as advertised and I haven't noticed any delay in the signal or issues with the quality when compared to a direct connection.hook up my PC as well as sending sound out to my soundbar

Signus

Audio Extractor eARC,ARC,7.1Ch
I’m using this to work around a limitation of my older AVR and it’s helpful. It’s well built and does some great audio redirects. I can get around my problem and get it all working.

Frequently Bought Together

HDMI 2.1 eARC Audio Extractor AMP

Navceker 8K 60Hz HDMI 2.1 eARC Audio Extractor RGB 4:4:4 HDR 10+ HDMI Audio Splitter with HDMI AUDIO ONLYfor PS5, XBox Series X/S and Nintendo Switch

Why you love it
  • Visual Enjoyment,8K@60Hz,4K@60/120Hz,2K@144Hz,1080P@240Hz
  • eARC,HDR 10+,VRR, ALLM, QMS, QFT, SBTM,Dolby Vision
  • Audio Enjoyment,eARC/ARC mode,eARC for 7.1CH: Dolby Atmos;ARC for 5.1CH:DTS,DSD.Dolby AC-3 etc;
  • 48Gbps transmission Speed,CEC Control,Smart EDID Management
  • Connect Game Console/Host,Input:PS5/4,XBox,Roku, PC,Laptop etc,Output: HDMI TVs, projectors, monitors,AUDIO OUT:Amplifier and AV Receiver.
  • Certified by CE,FCC & ROHS,One Year Free Warranty.
  • Buy with confidence, we have obtained the relevant certification to ensure safety and reliability.

Navceker HDMI 2.1 eARC Extractor is design by High-performance ITE：IT66188 and IT66358,6-Layer PCB,Aluminum Shell and 24K Gold Plated Corrosion-resistant Connectors to ensure superior signal transfer.
There are 8 kinds of EDID Management with AUDIO OUT to enjoy 7.1CH / 5.1CH / 2.0CH as you hope.

High-performance Chipset
ITE：IT66188 and IT66358 to ensure get stable 8K@60Hz / 4K@60/120Hz image and eARC,No flick,No delay.
6-Layer PCB
Built-in ESD protection
Built-in automatic adjustment system
More Safe and Durable.
HDMI 2.1 and HDCP 2.3
8K@60Hz with YUV 4:2:0,12 Bit
4K@120Hz RGB 4:4:4,8/10/12Bit
Enjoy HDR 10+,eARC,VRR,ALLM,QMS,Dolby Vision,Dolby ATMOS.

Navceker HDMI 2.1 eARC Audio Splitter is Certified by CE,FCC & ROHS,Newest HDCP 2.3 protocol to protect User's privacy and 48 Gbps speed transmission.
Warm Tips:
1.when you use Amplifier or AV receiver,please use HDMI INPUT of Amplifier or AV receiver,DO NOT use HDMI eARC/ARC INPUT of eARC/ARC Amplifier or AV receiver.
2.Do not support Sonos eARC / ARC Soundbar
Each of device will pass 6 hours rigorous testing before delivery.

Usually we will ship within 1-3 days.
European countries-shipping time is usually 15-20 days.
North American countries-shipping time is usually 7-12 days.
Other countries-shipping time is usually 15-30 days.
Note: Due to remote locations, bad weather, and flight delays, the transportation time may be delayed.

Price:
$88.88
$111.25
HDMI 2.1 Audio Extractor

Navceker 8K 60Hz HDMI 2.1 Audio Extractor 4K 120Hz RGB 4:4:4 HDR 10+ HDMI Audio Splitter De-embedding with HDMI AUDIO ONLY,Toslink and Coaxial for PS4/5, XBox and Nintendo Switch

Why you love it
  • Visual Enjoyment,8K@60Hz,4K@120/144/165Hz,5120x1440@120Hz,2K@144Hz
  • HDR 10+,VRR,ALLM,QFT,Dolby Vision,Dolby ATMOS,RGB 4:4:4
  • Audio Enjoyment,Extractor mode,7.1CH: Dolby Atmos,DTS-X;Dolby TrueHD
  • Audio Enjoyment,Extractor mode,5.1CH:Dolby AC-3,DTS,DSD etc;2.0CH:PCM.
  • Two audio Switch Mode:Manual switch and IR remote control.
  • Connect Game Console/Host,Input:PS5/4,XBox one,Roku, PC,Laptop etc,Output: HDMI TVs, AV receiver,Soundbar,projectors, monitors.
  • Certified by CE,FCC & ROHS,One Year Free Warranty.
  • Buy with confidence, we have obtained the relevant certification to ensure safety and reliability.

Navceker HDMI 2.1 Audio Extractor is design by High-performance 8641UXU2,6-Layer PCB,Aluminum Shell and 24K Gold Plated Corrosion-resistant Connectors to ensure superior signal transfer.
There are four kinds of audio port 7.1CH:HDMI AUDIO ONLY,5.1CH:Optical SPDIF/Coaxial port and 2.0CH: 3.5mm Jack port to enjoy 7.1CH / 5.1CH / 2.0CH as you hope.

High-performance Chipset
8641UXU2 to ensure get stable 8K@60Hz / 4K@120/144/165Hz image and HDR 10+,No flick,No delay.
6-Layer PCB
Built-in ESD protection
Built-in automatic adjustment system
More Safe and Durable.
HDMI 2.1 and HDCP 2.3
4K@120Hz RGB 4:4:4 with PS5 and XBox One
4K@144/165Hz RGB 4:4:4 with RTX 3080/3090 computer and PC
Enjoy HDR 10+,CEC,VRR,ALLM,QFT,Dolby Vision,Dolby ATMOS.

Navceker HDMI Audio Extractor 4K 120Hz is Certified by CE,FCC & ROHS,Newest HDCP 2.3 protocol to protect User's privacy and 48Gbps speed transmission.
Warm Tips:
1.Navceker HDMI 2.1 Audio extractor not support eARC and ARC.
2.when you use eARC/ARC soundbar,please use HDMI INPUT of eARC/ARC soundbar,DO NOT use HDMI eARC/ARC INPUT of eARC/ARC soundbar.
Each of device will pass 6 hours rigorous testing before delivery.

Usually we will ship within 1-3 days.
European countries-shipping time is usually 15-20 days.
North American countries-shipping time is usually 7-12 days.
Other countries-shipping time is usually 15-30 days.
Note: Due to remote locations, bad weather, and flight delays, the transportation time may be delayed.

Price:
$63.99
$88.75
eARC Audio Extractor

Navceker 192KHz eARC Audio Extractor Converter Adapter with 7.1CH ATMOS HDMI AUDIO ONLY,Toslink,Coaxial and 3.5mm Jack for HDMI eARC TV,HDMI eARC projector

Why you love it
  • INPUT: HDMI eARC Input of HDMI eARC TV/Projector
  • Audio Out 1:HDMI ONLY for Dolby Atmos,DTS-X,Dolby HD,Dolby AC-3,PCM
  • Audio Out 2:Optical Toslink for DTS,DSD,Dolby AC-3,PCM,LPCM.
  • Audio Out 3:Coaxial for DTS,DSD,Dolby AC-3,PCM,LPCM.
  • Audio Out 4:3.5mm jack stereo for PCM,LPCM.
  • 192 KHz audio sampling rate,ONLY Connect HDMI eARC TV and HDMI eARC porjector .
  • Certified by CE,FCC & ROHS,One Year Free Warranty.
  • Buy with confidence, we have obtained the relevant certification to ensure safety and reliability.

Navceker eARC Audio Extractor is design by High-performance ITE：IT66121/QFN64+IT6622/QFN56,6-Layer PCB,Aluminum Shell and 24K Gold Plated Corrosion-resistant Connectors to ensure superior signal transfer.
There are four kinds of audio port 7.1CH:HDMI ONLY,5.1CH:Optical SPDIF/Coaxial port and 2.0CH: 3.5mm Jack port to enjoy 7.1CH / 5.1CH / 2.0CH as you hope.

High-performance Chipset
ITE：IT66121/QFN64+IT6622/QFN56 to ensure get stable eARC and 7.1CH ATMOS Out,No noise,No delay.
6-Layer PCB
Built-in ESD protection
Built-in automatic adjustment system
More Safe and Durable.
HDMI 2.1 and HDCP 2.3
Enjoy Dolby ATMOS,Dolby Digital Plus,Dolby True-HD and DTS-X from HDMI ONLY.

Navceker eARC Audio Converter is Certified by CE,FCC & ROHS,Newest HDCP 2.3 protocol to protect User's privacy and 48 Gbps speed transmission..
Warm Tips:
when you use eARC/ARC soundbar,please use HDMI INPUT of eARC/ARC soundbar,DO NOT use HDMI eARC/ARC INPUT of eARC/ARC soundbar.
Each of device will pass 6 hours rigorous testing before delivery.

Usually we will ship within 1-3 days.
European countries-shipping time is usually 15-20 days.
North American countries-shipping time is usually 7-12 days.
Other countries-shipping time is usually 15-30 days.
Note: Due to remote locations, bad weather, and flight delays, the transportation time may be delayed.

Price:
$30.99
$48.99

Frequently Asked Questions

Yes,it supports 8K@60Hz YUV 4:2:0 12Bit,4K@120Hz RGB 4:4:4 8/10/12Bit.

Yes,it supports CEC control

Yes,HDMI AUDIO OUT could connect with HDMI INPUT of AV Receiver / Amplifier,But it prohibit with HDMI eARC INPUT of eARC soundbar,Such as some sonos eARC/ARC soundbar

Yes,please connect eARC OUT of this HDMI 2.1 audio extractor with HDMI eARC port of your eARC soundbar,then turn on eARC of HDMI TV,you could enjoy DOLBY ATMOS.

Yes,It support eARC,when you use eARC,please use HDMI eARC input of your HDMI TV
